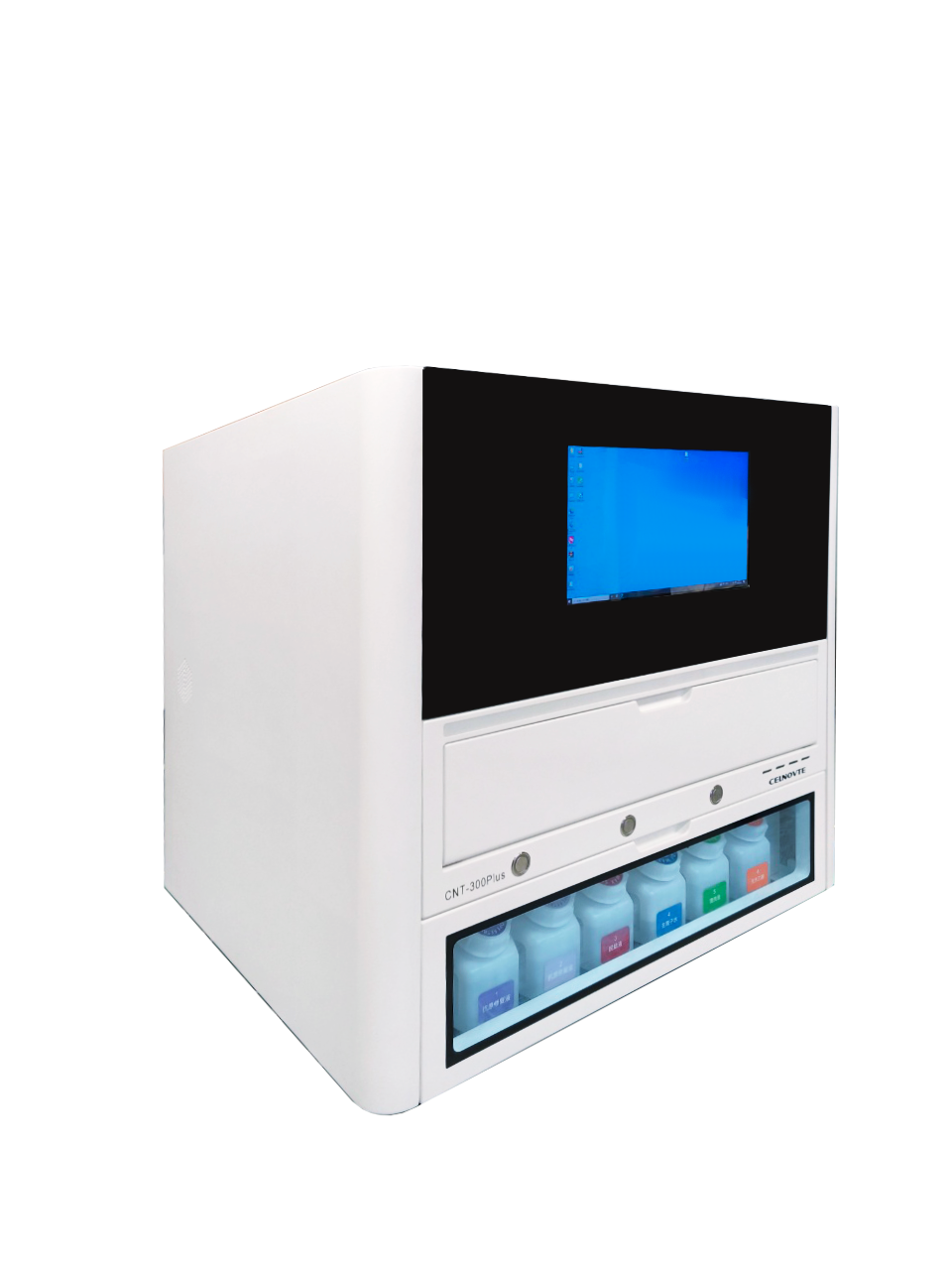

CNT300 plus Full Automatic Multiplex IHC Stainer
Optimize your IHC lab workflow with the CNT300 plus Full Automatic Multiplex IHC Stainer. This advanced system supports continuous operation, loading up to 30 slides across three independent frames simultaneously. Enjoy a fully automated process, including slice drying, deparaffination, antigen retrieval, and more, enhancing lab standardization and efficiency. Benchtop.
Product Feature
Specification
| General Characteristics | Description |
| Fully Automated System | A fully automated system covering the entire immunohistochemistry workflow, including slide baking, dewaxing, antigen retrieval, blocking, primary antibodyapplication, secondary antibody application, DAB staining, and counterstaining |
| Full Process Monitoring | Full monitoring of the entire staining process (including reagent dosage, dispensing times, and abnormal behavior) |
| Number of Slides Processed | Holds 30 slides; features 3 independent slide racks for continuous loading |
| Staining Time | 2.5-4 hours |
| Processing Temperature | Room temperature-100°C |
| Reagent Dosing Volume | 100 pL, 120 pL, and 150 pL |
| Dispense volume | 7 mL and 30 mL |
| Reagent container capacity | 5 mL, 10 mL, 25 mL, and 40 mL |
| Reagent Positions | 36 |
| High-Capacity Reagent Bottles | 3.6 L |
High/Low Concentration Waste Container Capacity | 15 L |
| Environmental Requirements | Description |
| Operating temperature | 5°C/35°C (41°F/95°F) |
| Maximum heating energy output | 1500 VA |
| Dimensions (L x W x H) | 850 mm x 770 mm x 840 mm |
| Weight | 149 kg |
| Electrical Parameters | Description |
| Voltage and Mains frequency | AC 100-240V 50/60Hz |
| Power consumption | 1500 VA |
